B1 - SYSTEM - EXP

Pedestrian-accessible roof with tiles


B1 - SYSTEM - EXP

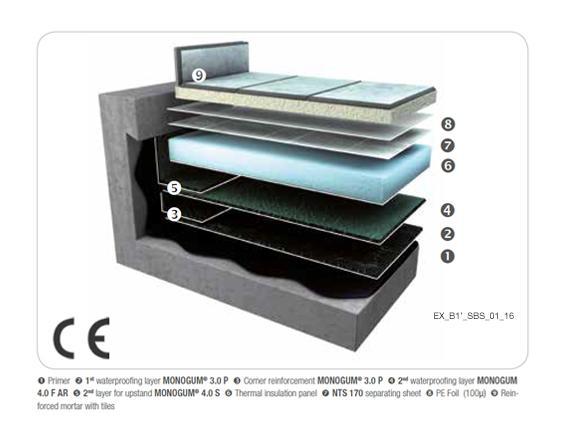

SOPREMA SYSTEM on inverted roofs

Soprema advice:

  • Upstand variant: Alsan® FLASHING (European Technical Approval ETA-08/0114) will avoid the use of counter flashing protection on parapets. This no-flame system is easy to apply and saves application time.
  • Time saved: addition of silica on the fresh top coat of Alsan® FLASHING to be used with adhesive mortar.
  • In high frost-risk areas, 3cm thick ballast with the separating and protective geotextile NTS 170 is required.

Aucun document

Summary

  1. TYPE OF WORK Pedestrian accessible roof
  2. TYPE OF PROJECT Wet rooms under tiles
  3. SUBSTRATE Reinforced concrete substrate
  4. THERMAL INSULATION With insulation
  5. SLOPE 1,5 - 5%
